Flagship · System window
YFG90 Three-Cavity Integrated Screen System Window
One frame. Three cavities. Screen, glass and sash in a single plane.
01 — Overview
Engineered detail, not marketing copy.
YFG90 is the window we specify when a project cannot afford to compromise: deep 90 mm frame, 2.0 mm load-bearing walls, three independent thermal chambers and a 25 mm visible face that keeps sightlines quiet. The stainless insect screen sits flush inside the frame instead of bolted on the outside, so ventilation no longer costs you the view or the finish.
Villa living rooms and master bedroomsSeafront and riverside residencesBoutique hotels and resortsProjects within 500 m of the coast
| Profile alloy | 6063-T5 primary aluminum, T5 temper |
|---|---|
| System depth | 90 mm frame · 25 mm visible face |
| Load-bearing wall | 2.0 mm |
| Thermal structure | Three independent cavities, PA66 GF25 polyamide strips |
| Glass | 5 + 20A + 5 mm double tempered (Low-E optional) |
| Insect screen | 304 stainless steel mesh, flush integrated |
| Hardware | German-brand tilt-turn or casement hardware |
| Sealing | EPDM co-extruded gaskets, three sealing lines |
| Opening | Inward casement, tilt-turn, fixed + operable combinations |
| Colours | Powder-coated RAL range, anodized, wood grain |
02 — Tested performance
What the classification means
Values below are the classification for this series with the standard glass build. Reports for the exact configuration you order are supplied with the documents.
Wind load
Class 9 · 5.0 kPa
Water tightness
Class 6 · 700 Pa
Air tightness
Class 6 · 1.5 m³/(m·h)
Acoustic
Class 5 · 35 dB
Thermal
Class 6 · 2.0 W/(m²·K)
Performance is configuration-dependent. Glass build, sash size, installation quality and exposure all change the result; we quote values for the exact build you order.
03 — Colours & finishes
Ten standards, or matched to your sample.
Jet black, mattRAL 9005
Anthracite greyRAL 7016
White aluminiumRAL 9006
Oyster whiteRAL 1013
Champagne anodisedAN-CG
Teak wood grainWG-TK
Any RAL, matched to sampleRAL-CUS
Powder coating at 40–80 μm on a chromated pre-treatment, in a matte, satin or anodised finish. Teak and walnut sublimation are available, and any RAL can be matched from a physical sample. Colour boards are sent for approval before production.
04 — Design details
The detail is the difference.
Three cavities, not one
The frame is divided into three closed chambers. Each one interrupts heat transfer, and the outer two carry drainage away from the inner seals.
Screen without the visual cost
The 304 stainless mesh runs in its own track inside the frame, flush with the sash. From inside you see one clean line, not a bolt-on box.
Engineered for driven rain
Stepped drainage, pressure-equalised chambers and three EPDM sealing lines deal with wind-driven rain instead of relying on a bead of silicone.
Hardware that survives humidity
Multi-point locking with stainless internals; handles and hinges tested for coastal air rather than dry inland air.

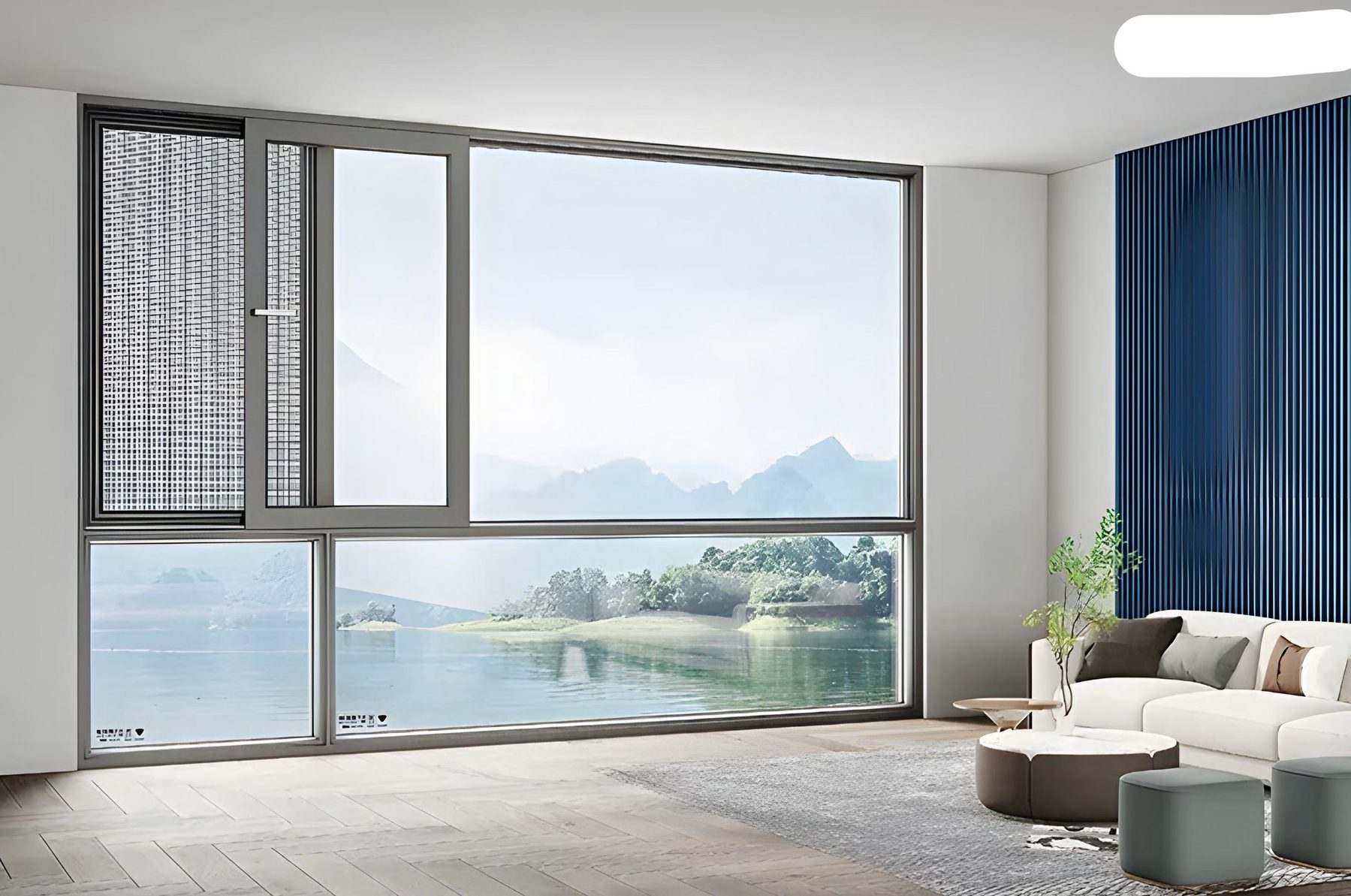

05 — In context
In a finished project.
