Large opening · Folding
68 / 75 Series Aluminum Folding Door
Open the whole wall, then put it back.
01 — Overview
Engineered detail, not marketing copy.
Folding doors fail at the hinges and the bottom track. Ours hang from a reinforced top rail with stainless rollers, so the weight travels up into the structure instead of sitting in a floor channel full of sand. Panels stack tightly to one side, and the 75 series carries panels up to 3.2 m high for double-height living rooms.
Living room to terracePoolside pavilionsRestaurants and hotel terracesCourtyard houses
| Series | 68 (invisible hinge) · 75 (heavy duty) |
|---|---|
| Wall thickness | 2.0 mm |

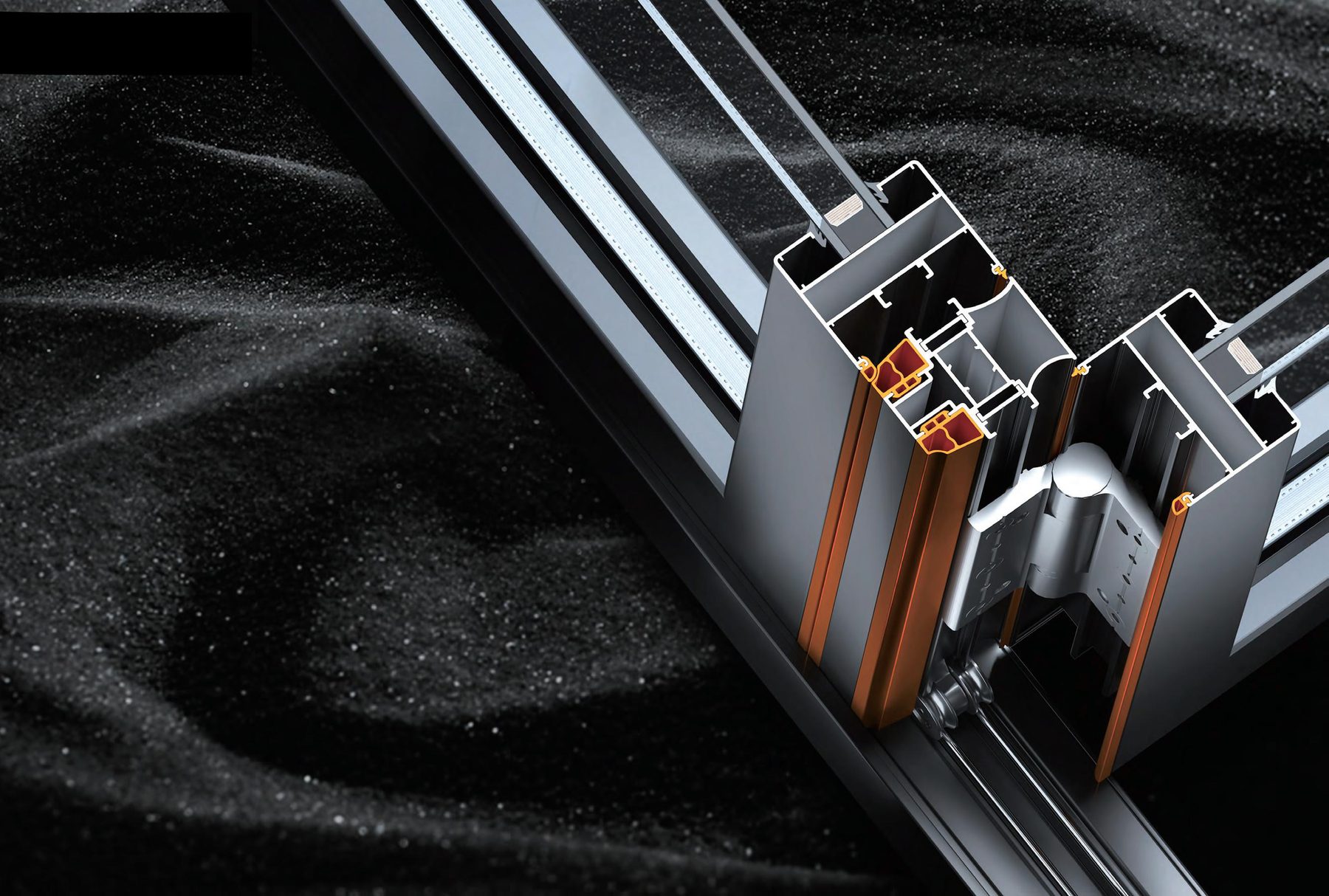

| Hanging system | Top-hung, stainless rollers, reinforced head rail |
| Glass | Double tempered insulated 5+12A+5 / 6+12A+6 |
| Panel height | Up to 3,200 mm (75 series) |
| Stack width | ≈ 90 mm per panel |
| Threshold | Low-profile or flush track option |
| Hardware | Stainless hinges, multi-point lock, concealed handle |
| Sealing | Brush + EPDM double seal at head and jambs |
| Colours | Matt black, moon grey, anodized champagne, RAL |
02 — Tested performance
What the classification means
Values below are the classification for this series with the standard glass build. Reports for the exact configuration you order are supplied with the documents.
Clear opening
Up to 95% of width
Panel height
Up to 3.2 m
Water tightness
Raised threshold
Operation
Top-hung stainless rollers
Acoustic
Insulated double glazing
Performance is configuration-dependent. Glass build, sash size, installation quality and exposure all change the result; we quote values for the exact build you order.
03 — Colours & finishes
Ten standards, or matched to your sample.
Jet black, mattRAL 9005
Anthracite greyRAL 7016
Champagne anodisedAN-CG
Bronze anodisedAN-BZ
Teak wood grainWG-TK
Any RAL, matched to sampleRAL-CUS
Powder coating at 40–80 μm on a chromated pre-treatment, in a matte, satin or anodised finish. Teak and walnut sublimation are available, and any RAL can be matched from a physical sample. Colour boards are sent for approval before production.
04 — Design details
The detail is the difference.
Weight goes up, not down
Top-hung panels ride a reinforced head rail. The floor stays clear, which also means the door does not seize after a season of grit.
Stacked, not scattered
Panels fold flat against each other, taking about 90 mm of wall per leaf when open.
A threshold you can walk over
Low-profile and flush track options keep the indoor and outdoor floor levels close.
Lockable when closed
Multi-point locking on the leading panel, with concealed handles on the interior face.
05 — In context
In a finished project.
