Wide opening · Sliding
92 Series Three-Track Sliding Window
Two-thirds of the opening, without a swing arc.
01 — Overview
Engineered detail, not marketing copy.
Where a balcony or living room opens onto a garden, a casement window steals the space it swings into. The 92 series puts three tracks in a 92 mm frame so two sashes can slide past a fixed panel: wide ventilation, an unobstructed view, and a screen that runs on its own rail so you can leave the glass open through the rainy season.
Balconies and patiosLiving rooms opening to a gardenKitchens needing cross ventilationCondominium units with limited swing space
| Profile alloy | 6063-T5 primary aluminum |
|---|---|
| Wall thickness | 1.2 mm standard / 1.4 mm heavy duty |
| Tracks | Three-track, stainless steel silent rail insert |
| Glass | 5 + 9A + 5 mm insulated, or 5 mm single glazed |
| Insect screen | 304 stainless steel mesh, independent track |
| Drainage | Concealed sill drainage with one-piece bent hollow flashing |
| Safety | Anti-derailment top rollers, anti-lift blocks |
| Sealing | Anti-mosquito wool pile + bent hollow weather strip |
| Sash width | Up to 1,200 mm · height up to 2,400 mm |
| Colours | Metal grey, metal coffee, black gold sand |
02 — Tested performance
What the classification means
Values below are the classification for this series with the standard glass build. Reports for the exact configuration you order are supplied with the documents.
Opening ratio
Up to 2/3 of opening
Water tightness
Concealed stepped drainage
Air tightness
Wool pile + hollow strip
Acoustic
5+9A+5 insulated
Operation
Stainless silent rail
Performance is configuration-dependent. Glass build, sash size, installation quality and exposure all change the result; we quote values for the exact build you order.
03 — Colours & finishes
Ten standards, or matched to your sample.
Jet black, mattRAL 9005
Anthracite greyRAL 7016
Grey brownRAL 8019
Champagne anodisedAN-CG
Any RAL, matched to sampleRAL-CUS
Powder coating at 40–80 μm on a chromated pre-treatment, in a matte, satin or anodised finish. Teak and walnut sublimation are available, and any RAL can be matched from a physical sample. Colour boards are sent for approval before production.
04 — Design details
The detail is the difference.
Three tracks, real clearance
The middle sash rides its own rail, so the open span is not limited by the fixed panel.
Hidden drainage
Water leaves through the sill, not across the track. The one-piece bent flashing keeps the joint under the frame watertight.
Screen on its own rail
You can close the mesh and leave the glass open — the arrangement most Thai households actually live with.
Anti-derailment top track
Rollers are captured in the upper rail so a large sash cannot lift out in gusty conditions.
05 — In context

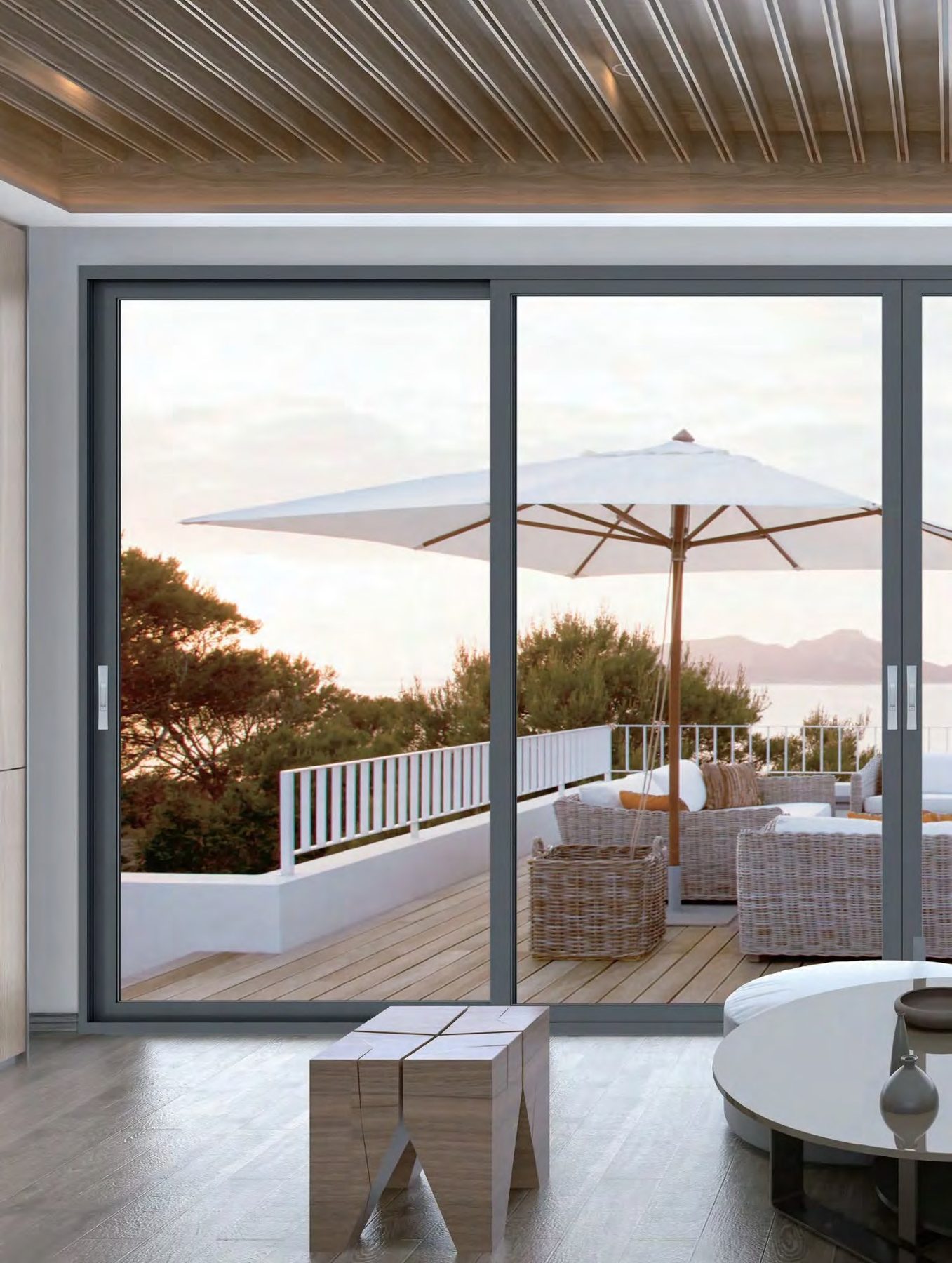

In a finished project.
